INDUSTRIAL BARCODE SCANNER

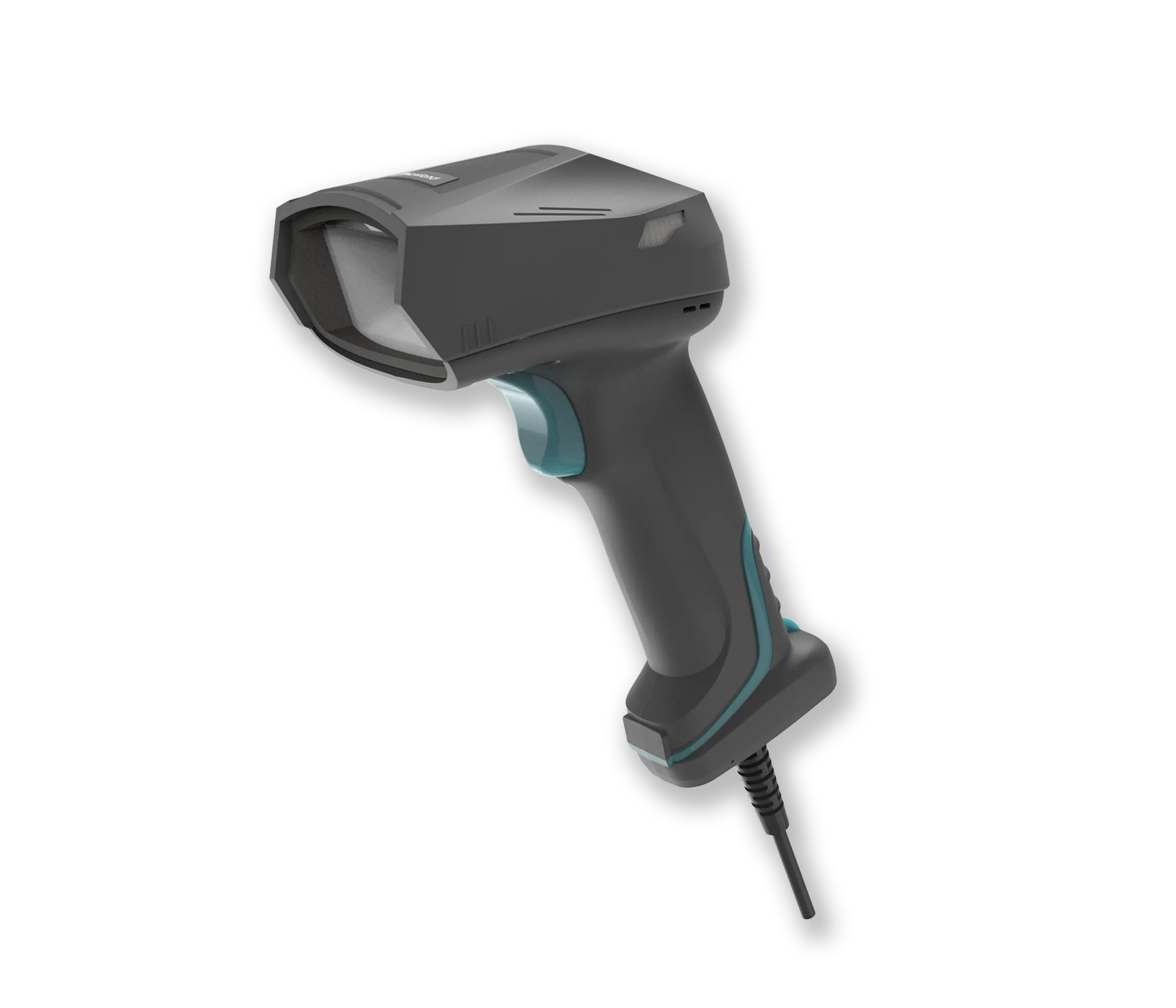

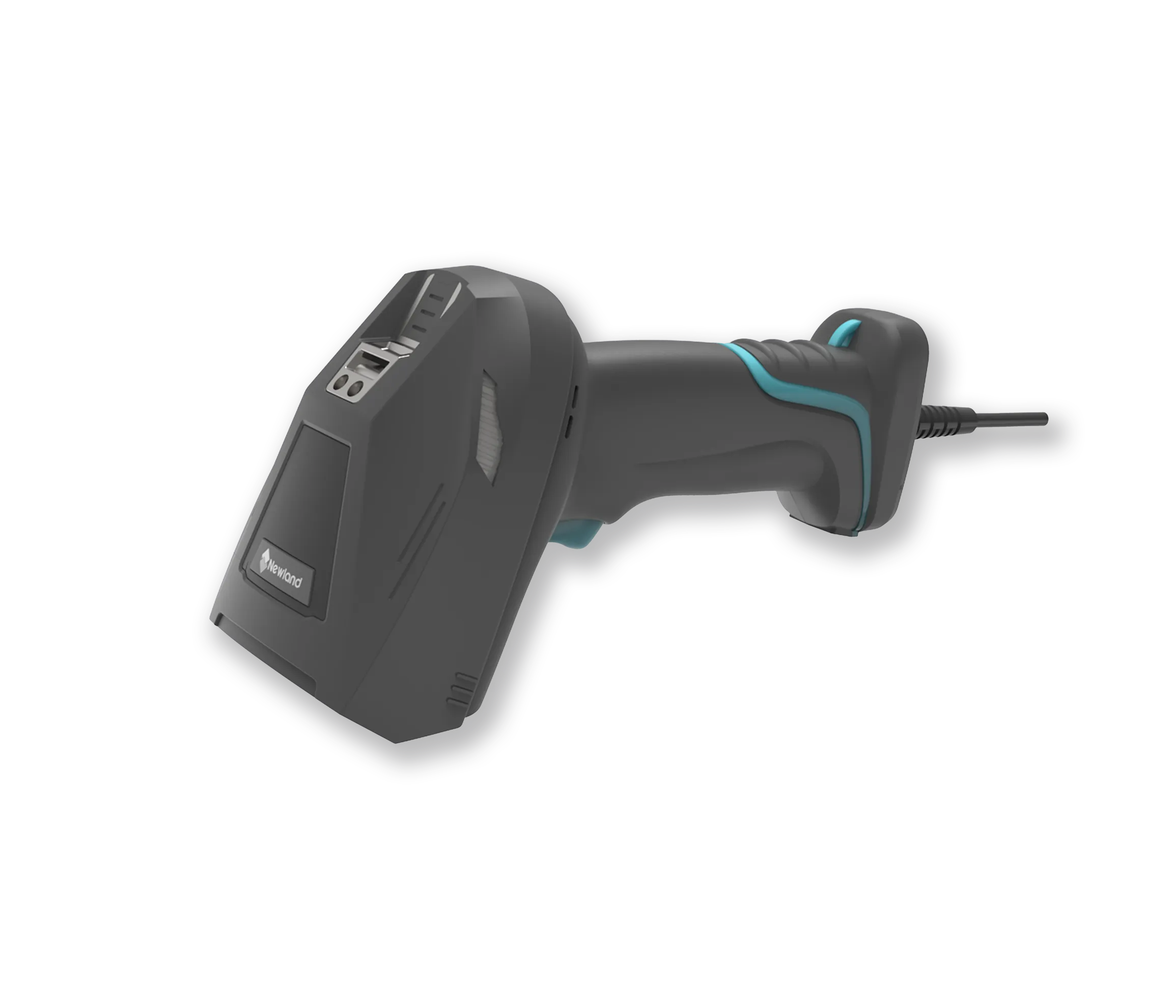

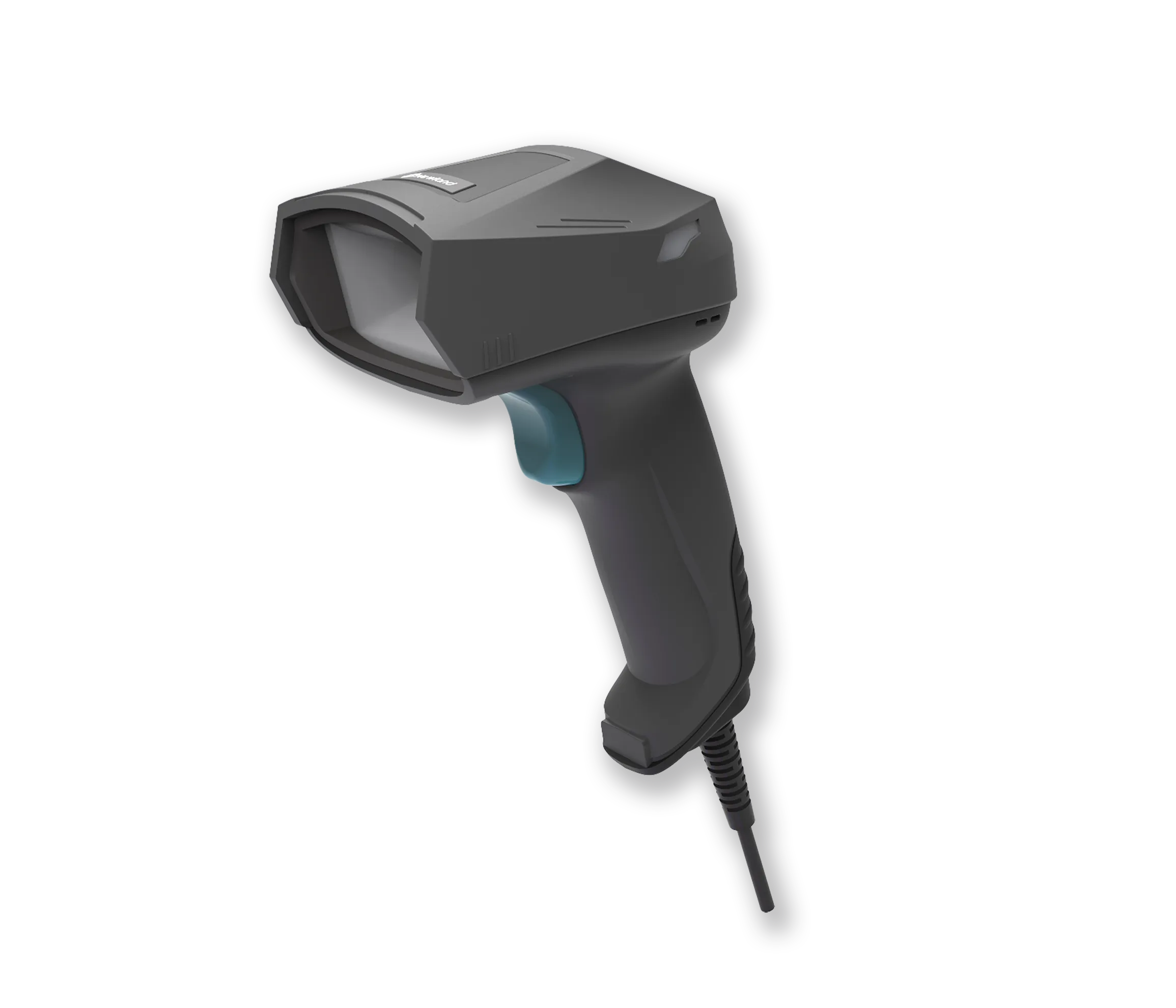

Newland- NVH300-DP Industrial Scanner

  • Advanced Illumination system
    Provide white direct illumination, red diffuse ring lights, rich lighting system can meet different materials (such as reflection), shape (curved surface), background and bar code color of all kinds of complex scanning code needs.
  • Excellent DPM Decoding Capability
    With the new generation of industrial decoding algorithm, it has strong decoding ability for DPM barcodes such as radium carving and dotting barcodes.
  • High Protection Industrial Structure Design
    The NVH300, built into an IP64-sealed and drop resistant (1.8m) housing with no moving parts fortifies itself inside and out.
  • Intelligent Light Selection & Great Configuration Functions
    It is equipped with intelligent light source selection, which can automatically adjust the light source. And EasySetEX software provides a variety of configuration functions.
  • Vertical:
    Healthcare
    Manufacturing
Modeling NVH-300DP
Image Sensor 1280×960 CMOS
Illumination Aiming Direct: White LED
Diffuse: Ring of red LEDs, Ring of blue LEDs
650nm laser diode
Symbologies 2D
1D
QR Code, Data Matrix
EAN-8, EAN-13, UPC-E, UPC-A, Code128,
Coupon, UCC/EAN128, CodaBar, I2Of5,
Febraban, ITF14, ITF6, Matrix 25, Code39,
Code93, ISSN, ISBN, Industrial 25, Standard
25, China Post 25, Plessey, Code 11, MSI
Plessey, UCC/EAN Composite, GS1 Databar, Code 49, Code 16K, AIM 128, ISBT 128.
Resolution ≥3mil
Typical Depth of Field Code 39
Data Matrix
Data Matrix
QR Code
QR Code
38mm-68mm (3.3mil)
18mm-90mm (5mil)
18mm-58mm (5mil)
0mm-90mm (10mil)
20mm-50mm (5mil)
0mm-90mm (10mil)
Scan Angle Pitch: ±60°, Roll: 360°, Skew: ±55°
Min. Symbol Contrast 20%
Motion Tolerance Max. 2m/s (6.56ft/s)
Field of View Horizontal 41°, Vertical 31°
Dimensions (L×W×H) 76(W)×107(D)×185(H)mm
Weight 245gm
Notification Beep, LED, Vibration
Operating Voltage 5VDC±5%
Interfaces RS-232, USB
Rated Power Consumption 2250mW (typical)
Current@5VDC Operating Standby 276.8mA (typical), 322.7mA (max.) 83.3mA
Storage Temperature -40°C to 70°C (-40°F to 158°F)
Humidity 5%~95% (non-condensing)
ESD ±8 KV (direct discharge); ±16 KV (air discharge)
Drop 1.8m/5.9ft
Sealing IP64
Certificates & Protection FCC Part15 Class B, CE EMC Class B. RoHS
Output DC 24V, 2.5A
Input Voltage AC 100V ~ 240V, 50/60Hz
Reliabilty TPH 50 km
Options & Accessories External 8-inch Label Roll Holder
Cutter Module (H4GC, Black)
Peeler Module (H4P, Black)
